Uganda Water Project
Location
Moyo General Hospital Center, northwestern Uganda, less than 20 km from the South Sudan border
Project Duration
January 23, 2025 - February 28, 2025
Method
Rehabilitation of Moyo General Hospital Water Transmission System
Project Achievement
The first phase of the water rehabilitation project improved the hospital's water transmission system by 75%. Operational boreholes increased from two to four, raising daily water supply 62,400 liters to 111,000 liters, a 44% capacity increase. Key structural issues were addressed, including non-return valve replacements, manhole construction, and pipeline protection at road crossings. Monitoring was enhanced with new water meters and level indicators.

Moyo General Hospital - Uganda
Moyo General Hospital, established in 1971 with an initial capacity of 100 beds, has since expanded to accommodate 200 beds. Located in northwestern Uganda, less than 20 kilometers from the South Sudan border, the hospital serves approximately 118,800 residents and acts as a critical referral center for over 200,000 refugees in the region. The facility plays a vital role in delivering healthcare services to both the local population and displaced individuals seeking medical care.​​
Needs Assessment
​​Despite its importance, Moyo General Hospital has long struggled with severe water shortages. The hospital’s water supply comes from four motorized boreholes that pump into a 144m³ reservoir tank, which distributes water throughout the hospital and staff quarters. However, two of these boreholes were non-functional, and structural weaknesses in the transmission lines and plumbing system led to unreliable water access. These issues placed immense strain on hospital operations, sanitation, and patient care, making a sustainable solution critical.
Partnership
WIHA funded a comprehensive water rehabilitation project in partnership with Pipeline Worldwide, a nonprofit organization dedicated to strengthening communities in Northern Uganda through collaboration and partnerships. This marks our first collaboration with a nonprofit in Uganda, and their expertise in project management was instrumental in overseeing the implementation. Pipeline Worldwide managed the project and hired Vodo Engineering (U) Ltd, a specialized contractor, to execute the repairs and infrastructure upgrades, successfully rehabilitating the hospital’s water transmission system.​​
Objective
The objective of this initiative was to rehabilitate the hospital’s water transmission system and increase water access by 75 percent. The project successfully restored all four boreholes to full operation, increasing daily water supply from 62,400 liters to 111,000 liters—a 44 percent improvement. Key upgrades included replacing damaged pipelines, installing new fittings and protective measures, and reinforcing the structural integrity of the boreholes. These enhancements have significantly improved water distribution, ensuring that essential hospital departments, including maternity, surgical, and emergency care, have reliable access to clean water.​​
Impact
By addressing longstanding water challenges, this project has strengthened hospital operations, improved hygiene standards, and enhanced infection control measures, ultimately contributing to better healthcare delivery. Through the collaboration of WIHA, Pipeline Worldwide, and Vodo Engineering, Moyo General Hospital now has a sustainable and reliable water system, providing critical support to thousands of patients, staff, and community members who depend on it every day.
![]() | ![]() | ![]() |
---|---|---|
![]() | ![]() | ![]() |
![]() | ![]() | ![]() |
![]() |
Scope of Work
-

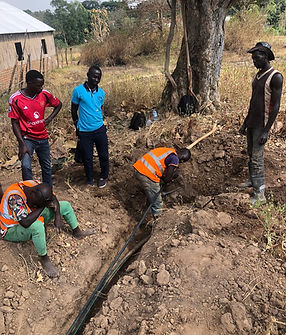

The connections for Borehole #1 and Borehole #2 were fully restored, incorporating protective reinforcements to ensure long-term functionality and safety.
-
To boost water supply capacity, a brand-new pump was installed for Borehole #1, significantly increasing water output.
-
A dedicated transmission line with fittings was installed for Borehole #2, ensuring a reliable and consistent water supply for hospital operations.
-
New riser pipes and fittings were installed for Borehole #2 and Borehole #4, enhancing the efficiency and performance of the water system.
-
The transmission line for Borehole #4 was replaced with new fittings and protective measures, improving water flow and overall system efficiency.
-

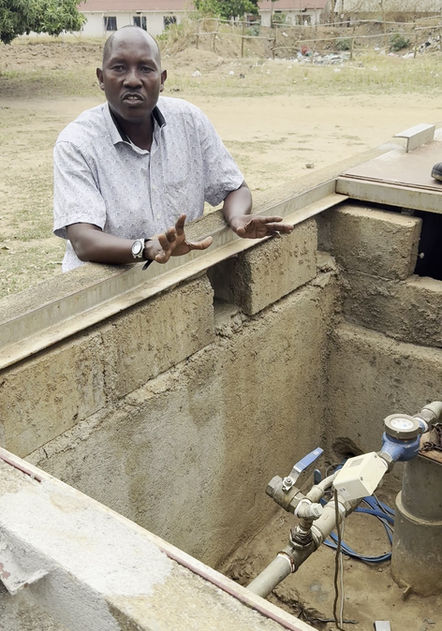

Non-functional water meters were replaced, air release valves were installed, and borehole structures were reinforced, improving efficiency, monitoring, and service delivery for the hospital and surrounding community.


Moyo General Hospital's Water Rehabilitation Project:
At Moyo General Hospital, access to clean water has significantly improved, increasing the water supply by 44%, repairing four boreholes, and enhancing hygiene and sanitation for thousands of patients and staff. This essential resource now supports maternity, surgical, and emergency care, ensuring a reliable water supply where it’s needed most.
Key Achievements
Access to Clean Water for Healthcare
Improved Quality of Life for the Community
Strengthening Infrastructure
Enhancing Water Monitoring
Increased operational boreholes from two to four.
Improved daily water supply from 62,400 liters to 111,000 liters, representing a 44% increase in capacity.
Addressed key structural issues, including non-return valve replacement, manhole construction, and pipeline protection at road
crossings.
Improved monitoring through water meter replacements and the installation of level indicators.
Long-Term Impact
Before this project, only two boreholes were operational, but now all four pumps are fully functional, significantly enhancing our water supply capabilities. We have increased the daily water supply to the storage tank from 62,400 liters to an impressive 111,000 liters, achieving a 44% increase in capacity. This improvement not only exceeds the estimated daily water demand of 83,891 liters at Moyo General Hospital but also that clean, safe drinking water is readily available. As result, we are able to enhance hospital operations, improve patient service delivery, bolster hygiene practices, and support infection prevention efforts. Our commitment to providing clean water is making a tangible impact on maternal health and overall community well-being, showcasing the vital role of our mission at WIHA.
